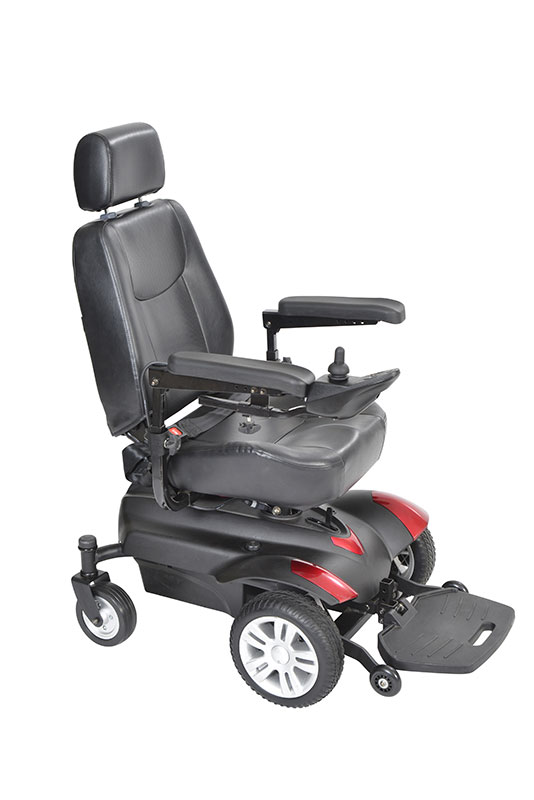

Drive Medical Titan Front Wheel Power Wheelchair 20" Captain Seat

The front wheel drive Titan power wheelchair is a comfortable and stylish option for users seeking a transportable power mobility product that's ideal for indoor and outdoor use. The Titan's front-wheel system positions the drive wheel forward of the user's center of gravity, making the chair extremely stable and giving it great performance over small obstacles. The Titan is also great indoors, navigating tight, enclosed spaces with ease. The Titan is also perfect for users on the go, as the chair can be disassembled, without tools, into components that can be loaded into a car, truck or van for transport without the need for a cumbersome vehicle rack. This chair comes with a 20" Captain's Seat. You can also customize your Titan with the included two sets of interchangeable color panels.

Product Features

• Height-adjustable swivelling Captain's seat features fold-down backrest
• Includes interchangeable color panels in red and blue
• Seat back reclines and features adjustable headrest
• Adjustable-length controller mount
• Armrests are padded, adjustable, and removable
• Optional swing-away controller arm sold separately
• Adjustable, flip-up footplate
• Positioning belt included
• Optional elevating leg rests sold separately
• Programmable controller
• Flat-free, non-marking tires
• Easy freewheel operation
• Anti-tip wheels

Product Specs

• Actual Product Weight: 168 lbs
• Batteries: 2 - 12V 35AH
• Battery Weight: 44 lbs
• Brakes: Electromagnetic
• Casters: 6"
• Charger: Offboard, 3A
• Climbing Angle: 6 degrees
• Controller: Dynamic Shark 40A
• Drive Wheels: 10" x 3" Flat Free
• Ground Clearance: 2.5"
• Heaviest Piece: 68 lbs
• Max Speed: 4 mph
• Maximum Range: 15 miles
• Motor: 2 - 24V x 200W x 3900rpm
• Number of Wheels: 4
• Overall Product Height: 44"
• Overall Product Length: 40"
• Overall Product Width: 25"
• Primary Product Color: Red, Blue
• Primary Product Material: Steel
• Product Weight Capacity: 300 lbs
• Seat Depth: 18"
• Seat Weight: 43 lbs
• Seat Width: 20"
• Seat to Floor Height: 20.5"-23"
• Seat to Foot Deck: 16"-18.5"
• Steering Type: Joystick
• Turning Radius: 25"
• Wheelchair Weight Without Battery: 125 lbs
• Top Speed: 4mph
• Maximum Range: 15 miles
• Turning Radius: 25"
• Climbing Angle: 6 deg
• Ground Clearance: 2.5"
• Floor to Seat Height: 20.5"-23"
• Seat Depth: 18"
• Drive System: Two 24Vx200Wx3900rpm
• Batteries: 12Vx35AH
• Charger: 3A Off board
• Brakes: Electromagnetic
• Drive Wheels: 10"x3"
• Caster Wheels: 6"x2"
• Base Weight: 68lbs
• Battery Weight (pair): 44lbs
• Seat Weight: 39lbs
• Total Weight: 151lbs
• Heaviest Piece: 55lbs

Weight Capacity: 300 lbs

Warranty: Limited Lifetime on Frame; 14 Month Limited on Electronics, Controller and Drive Train components; 6 Month Limited on Battery

Basic Assembly Required; No Installation Required
